2 DIE 4 BLOW cold header, two die four blow cold forming machine, 2 die 4 blow cold heading machine and 2 die 4 blow forging machine

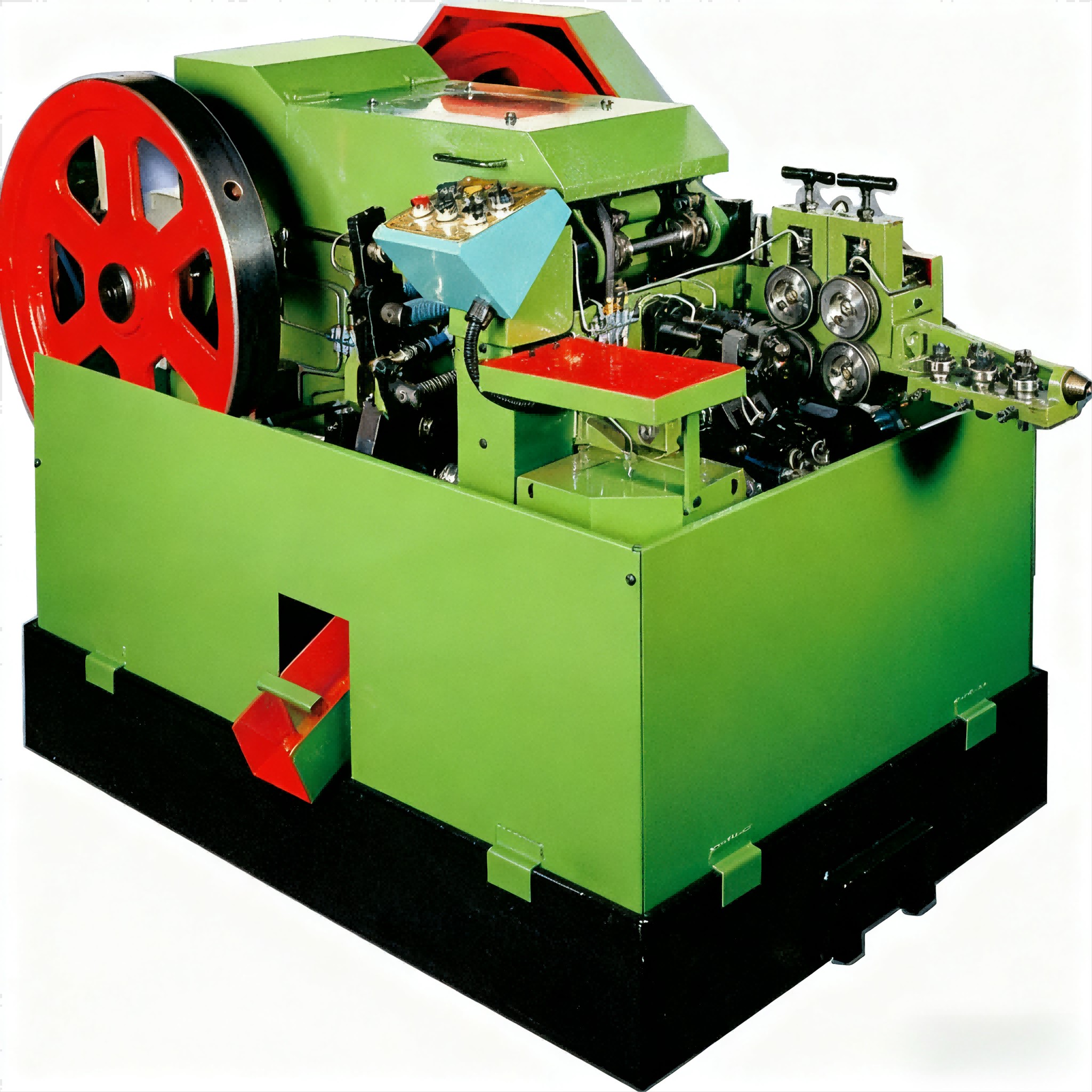

FMT high speed 2 die 4 blow cold header is good for producing big head screw, screw with shoulder, rivet and bolts are problem to transfer on multi-station machine.
what is a 2 die 4 blow heading machine
The FMT high speed 2-die 4-blow (2D4B) cold heading machine is a type of four strokes function that can achieve various cold forming processes; The two die four blow heading machine for cutting and cold forming various processed metal wires to form the wires in the die,which has the characteristics of producing a wide range of products and stability. It is used to produce various types of screws, including Self-tapping screw, drilling screws, special screws, non-standard screws, bolt, etc.Especially for irregular products with large head deformation (big head), short length, and multiple shoulders.
- This high speed two die four blow cold forming machine designed for bolt screw and rivet which are difficult to transfer on multi-station cold heading machine.
- Heading / Forming station: 2 die 4 blow
- less transfer for the big head and short part;
- Wire diameter from Φ5-Φ15mm;
- Steppless variable speed;
- Independent PKO on each punch;
Options: inverter， load monitor, sound enclosure.
How to make daily maintenance of 2 die 4 blow cold heading machine
1. Regularly check whether the lub oil of the 2 die 4 blow cold heading machine is clean, so as to replace the new lubricating oil and filter in time;
2. Regularly check and test and adjust the gaps of each rotating part to ensure that the 2 die 4 blow heading machine can work well;
3. Vulnerable spare parts: some parts of the 2 die 4 blow cold heading machine are consumables that need to be replaced, and need to be regularly tested, and if damaged, new parts need to be replaced in time.
4. The two die four blow cold heading machine operator is responsible for the maintenance of the machine every day, and makes daily maintenance record.
5. Mechanical check up of the 2 die 4 blow cold heading machine: check whether the screws for the connection of each part of the machine are not loose and whether the parts can work normally;
6. When the 2 die 4 blow cold heading machine starts to run, listen to whether the sound of the cold heading machine working is abnormal sound and abnormalities.
7. Lubricating oil checking: Is it a special oil? Whether the quality of the lubricating oil is good, whether the lubricating oil of 2 die 4 blow cold heading machine is sufficient, and whether the lubricating circuit is smooth.
